Aluminium alloy auto sheet products with excellent properties can be customized by Flat-Rolled Product Division of Nanshan Aluminium according to the different requirements of customers. After the products are treated through the air cushion type continuous annealing furnaces, the coil properties are so uniform and stable that the downstream customers can be on a solid foundation to achieve the stable production in batches; meanwhile, the aluminium sheet products of Nanshan can also be pretreated according to the different finish requirements of customers, including texturing (EDT), passivation (Ti / Zr) and oiling (with different kinds of solid and liquid oil). In addition, in order to further serve customers, Nanshan is also equipped with the cut-to-length lines to meet the customers' sheet delivery requirements (including rectangular sheets and curved sheets).
Pype and Specification
5N54-O /5N82-O/6N16-T4P 0.5-4.0*1100-2300*C
Product Properti
|
Alloy |
Temper |
Tensile Strength |
Yield Strength |
Elongation after fracture |
Elongation at maximum force |
Strain Hardening Exponent 4-6 |
Plastic Strain Ratio |
Yielding-to-tensile Ratio |
|
5N54 |
O |
≥200 |
85-130 |
≥20 |
≥17 |
≥0.26 |
≥0.55 |
≤0.65 |
|
5N82 |
O |
≥255 |
110-160 |
≥23 |
≥20 |
≥0.26 |
≥0.60 |
≤0.60 |
|
6N16 |
T4P |
≥190 |
90-130 |
≥24 |
≥20 |
≥0.26 |
≥0.60 |
≤0.55 |
Product Features
High strength, low density and good formability, effectively saving the overall weight of passenger cars, reducing energy consumption and decreasing carbon dioxide emission.
Application Fields

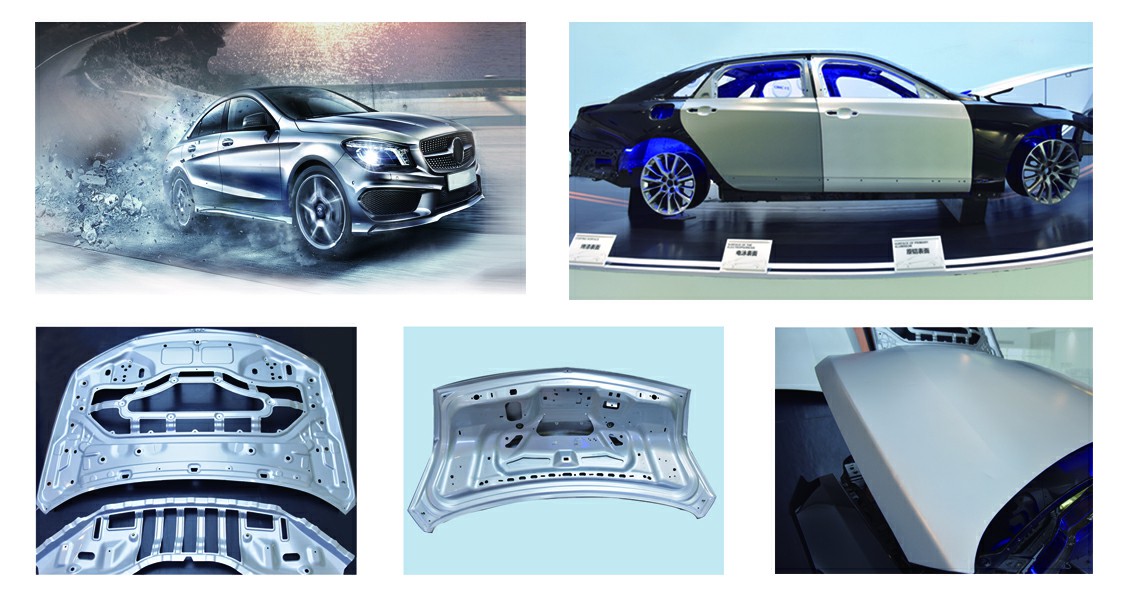

Mainly applied in covering parts and structural parts of passenger cars, including four doors & two hoods, and fenders etc.
